American Standard Single-Family Home Prefab Luxury Light Steel Frame House Modular

American Standard Single-Family Home Prefab Luxury Light Steel Frame House Modular

3 bedrooms  2 Bathroom  1 Living  1 Garage 140m²

Innovating Pacific Living: The VP House by DEEPBLUE SMARTHOUSE

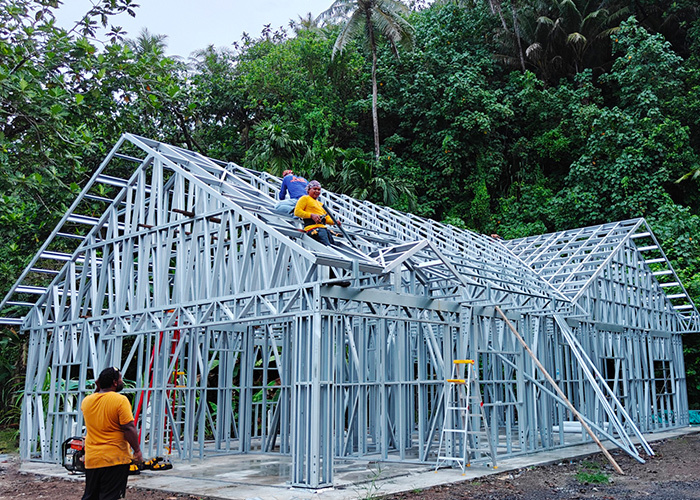

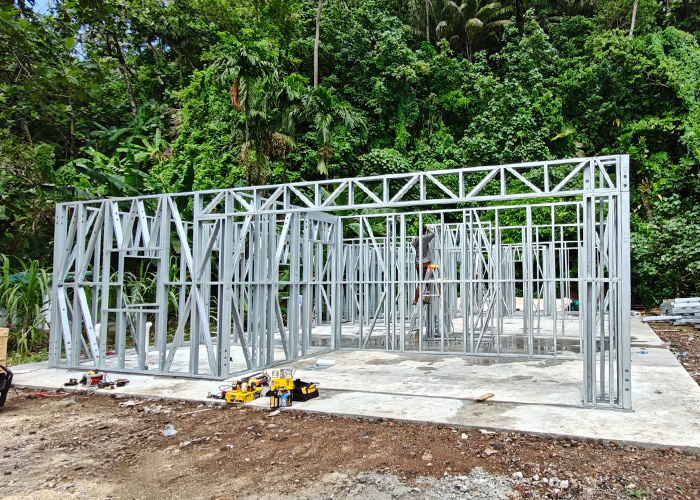

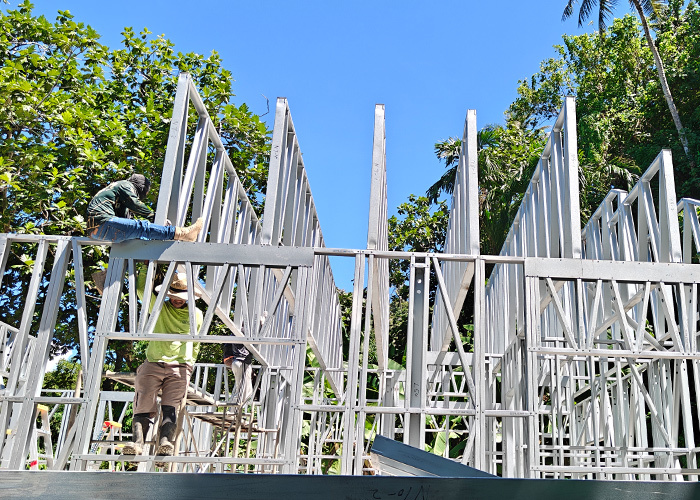

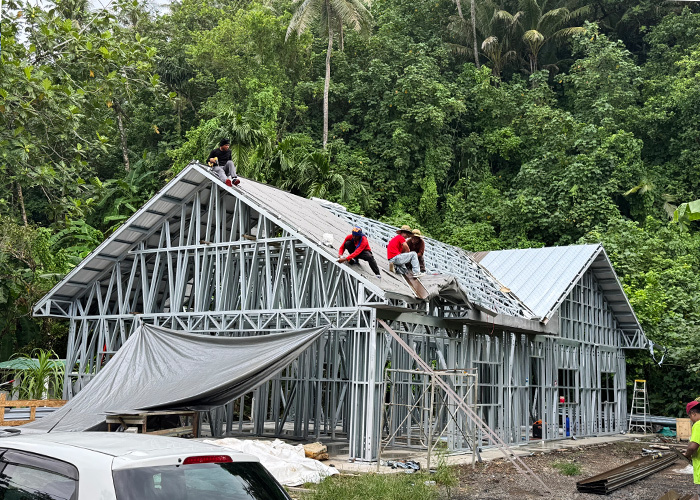

DEEPBLUE SMARTHOUSE is proud to present the VP House, a contemporary one-story bungalow constructed in Micronesia (August-September 2025). This project showcases how intelligent design and advanced manufacturing can create a perfect family home for a specific locale.

Floorplan:

Layout:

The journey begins with a convenient, covered carport at one end, protecting a vehicle from the elements.
The core of the home is a bright living room, strategically positioned between two peaceful bedrooms for optimal privacy.
An open-concept kitchen and dining area flow together at the rear, fostering a sense of connection during daily activities.
With two full bathrooms strategically placed, the home ensures comfort for all occupants.
A versatile room at the back offers the potential to be a home office, a guest suite, or a children's playroom, adapting to the family's evolving needs.
Every aspect of this bungalow is designed to enhance daily life, proving that a single-story layout can be both expansive and highly functional.

•

  Product parameters:



  Name:	VP House
  Size:	15265×9168mm
  Area:	140sqm
  Type:	single family home
  Floor:	1 floor
  Model:	DPBL-25-48







Certificate​:


A Global Benchmark for Quality and Safety Our technical capabilities are validated by internationally recognized certifications that speak a universal language of quality:

ISO Certification: Underpinning our entire operation with a systematic commitment to quality management.
ICC-ES Report: Provides evidence that our building systems comply with stringent international safety and performance standards, offering peace of mind to clients and regulators.
EN 1090 (CE Marking): This certification demonstrates our factory's proven competence in fabricating structural steel components to the highest European norms, facilitating projects in demanding markets.
These are not merely certificates on a wall; they are integral to our engineering process, ensuring every home we produce is built to last.

Product Description:

DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.

Specifications:

ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.

The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabrica
